0-1搭建Vue3+Vite3模板工程（4）-左侧菜单导航

发表于 更新于 分类于 阅读次数：
本文字数： 7.6k 阅读时长 ≈ 13 分钟

从0-1搭建Vue3+Vite3模板工程（1）-创建工程

从0-1搭建Vue3+Vite3模板工程（2）-安装依赖

0-1搭建Vue3+Vite3模板工程（3）-布局

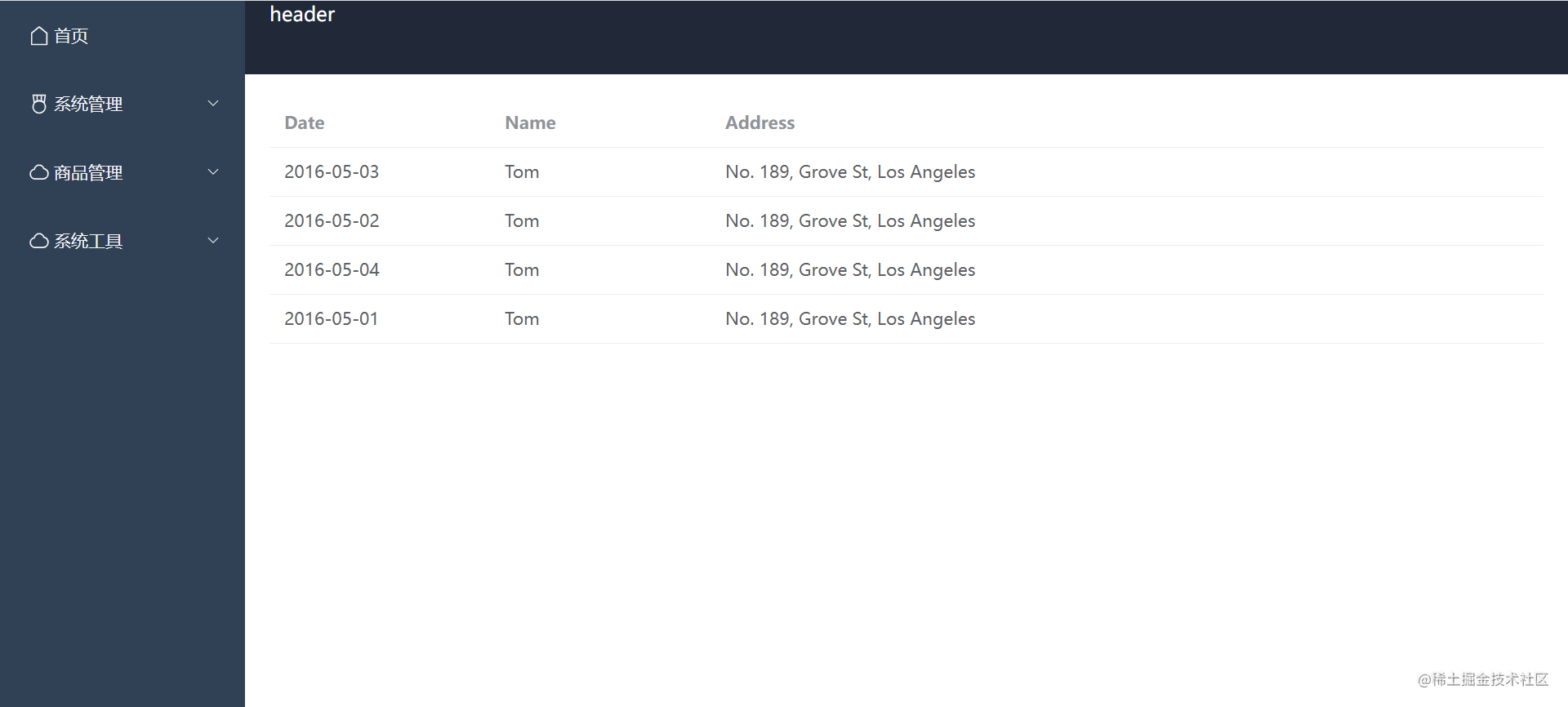

左侧菜单导航封装，包含多级菜单，可以配置隐藏某一个菜单。

  1. 先配置好路由，根据自己的需求，建立好相应的目录；

我的目录如下：


所以我的路由配置如下（别忘了提前在scr/views/下建立相应的页面级组件，在路由中需要引用）：
src\router\index.ts：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
import { createRouter, createWebHistory, RouteRecordRaw } from "vue-router"
import Layout from "@/layout/Index.vue"
export const routes: Array<RouteRecordRaw> = [
  {
    path: "/",
    component: Layout,
    redirect: "/home",
    meta: {
      title: "首页",
      icon: "House",
      hidden: false,
      roles: [],
    },
    children: [
      {
        path: "/home",
        component: () => import("@/views/home/index.vue"),
        name: "home",
        meta: {
          title: "首页",
          icon: "House",
          hidden: true,
          roles: [],
        },
      },
    ],
  },

  {
    path: "/system",
    component: Layout,
    name: "system",
    meta: {
      title: "系统管理",
      icon: "Medal",
      hidden: false,
      roles: [],
    },
    children: [
      {
        path: "/system/department",
        component: () => import("@/views/system/department/index.vue"),
        name: "department",
        meta: {
          title: "机构管理",
          icon: "MostlyCloudy",
          hidden: false,
          roles: [],
        },
      },
      {
        path: "/userList",
        component: () => import("@/views/system/user/index.vue"),
        name: "userList",
        meta: {
          title: "用户管理",
          icon: "MostlyCloudy",
          roles: ["sys:user"],
          hidden: false,
        },
      },
      {
        path: "/roleList",
        component: () => import("@/views/system/role/index.vue"),
        name: "roleList",
        meta: {
          title: "角色管理",
          icon: "MostlyCloudy",
          roles: ["sys:role"],
          hidden: false,
        },
      },
      {
        path: "/menuList",
        component: () => import("@/views/system/menu/index.vue"),
        name: "menuList",
        meta: {
          title: "权限管理",
          icon: "MostlyCloudy",
          roles: ["sys:menu"],
          hidden: false,
        },
      },
    ],
  },
  {
    path: "/goods",
    component: Layout,
    name: "goods",
    meta: {
      title: "商品管理",
      icon: "MostlyCloudy",
      roles: ["sys:goods"],
      hidden: false,
    },
    children: [
      {
        path: "/goodCategory",
        component: () =>
          import("@/views/goods/goodsCategory/index.vue"),
        name: "goodCategory",
        meta: {
          title: "商品分类",
          icon: "MostlyCloudy",
          roles: ["sys:goodsCategory"],
          hidden: false,
        },
      },
    ],
  },
  {
    path: "/systenConfig",
    component: Layout,
    name: "systenConfig",
    meta: {
      title: "系统工具",
      icon: "MostlyCloudy",
      roles: ["sys:systenConfig"],
      hidden: false,
    },
    children: [
      {
        path: "/document",
        component: () => import("@/views/system/config/index.vue"),
        name: "http://42.193.158.170:8089/swagger-ui/index.html",
        meta: {
          title: "接口文档",
          icon: "MostlyCloudy",
          roles: ["sys:document"],
          hidden: false,
        },
      },
    ],
  },
]
//创建
const router = createRouter({
  history: createWebHistory(),
  routes,
})
export default router

  1. 封装sidebar菜单导航组件：

src\layout\sidebar\index.vue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
<template>
  <el-menu
    default-active="2"
    class="el-menu-vertical-demo"
    :collapse="isCollapse"
    background-color="#304156"
    router
  >
    <menu-item :menuList="state.menus"></menu-item>
  </el-menu>
</template>
<script lang="ts" setup>
import MenuItem from "./menu-item.vue"
import { ref, reactive, onMounted } from "vue"
import { routes } from '@/router/index'

const  state =reactive({
  menus : [],
})
onMounted(() => {
  state.menus = handleRoutes(routes)
  console.log('menus', state.menus)
})

const setObjProperties = (target, source) => {
  Object.entries(source).forEach(([key, value]) => {
    if (value || typeof value !== 'undefined') {
      target[key] = value;
    }
  });
}

const handleRoutes = (routes) => {
  // 递归处理路由
  const routers = [];
  for (let i = 0; i < routes.length; i++) {
    const {
     redirect, path,
      meta, children = []
    } = routes[i];
    const { hidden } = meta
    if (hidden) break; // 隐藏的菜单
    // copy route
    const metaCopy = { ...meta };
    const router = { path, meta: metaCopy };
    // 复制属性
    setObjProperties(router, {
      redirect
    });
    // todo 权限判断

    // 子菜单
    const subChildren = children.filter((item) => !item.hidden);
    if (subChildren && subChildren.length) {
      if (!meta.showByOneChildren && subChildren.length === 1) {
        metaCopy.type = 'menu';
      } else {
        metaCopy.type = 'submenu';
      }
      router.children = handleRoutes(subChildren);
    } else {
      metaCopy.type = 'menu';
    }
    routers.push(router);
  }
  return routers;
}

//控制菜单展开和关闭
const isCollapse = ref(false)
</script>
<style scoped>
.el-menu-vertical-demo:not(.el-menu--collapse) {
  width: 100%;
  min-height: 400px;
}
.el-menu {
  border-right: none;
}
ul{
  margin: 0;
}
::v-deep .el-sub-menu .el-sub-menu__title {
  color: #f4f4f5 !important;
}
/* .el-submenu .is-active .el-submenu__title {
border-bottom-color: #1890ff;
} */
::v-deep .el-menu .el-menu-item {
  color: #bfcbd9;
}
/* 菜单点中文字的颜色 */
::v-deep .el-menu-item.is-active {
  color: #409eff !important;
}
/* 当前打开菜单的所有子菜单颜色 */
::v-deep .is-opened .el-menu-item {
  background-color: #1f2d3d !important;
}
/* 鼠标移动菜单的颜色 */
::v-deep .el-menu-item:hover {
  background-color: #001528 !important;
}
</style>

src\layout\sidebar\menu-item.vue：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
<template>
  <template v-for="menu in menuList" :key="menu.path">
    <el-sub-menu v-if="menu.children && menu.children.length > 0" :index="menu.path">
      <template #title>
        <!-- 动态组件的使用方式 -->
        <component class="icons" :is="menu.meta.icon" />
        <!-- 方式二 -->
        <!-- <Icon class="icons" :icon="menu.mata.icon"></Icon> -->
        <span>{{ menu.meta.title }}</span>
      </template>
      <menu-item :menuList="menu.children"></menu-item>
    </el-sub-menu>

    <el-menu-item style="color:#f4f4f5" v-else :index="menu.path">
      <i v-if="menu.meta.icon && menu.meta.icon.includes('el-icon')" :class="menu.meta.icon"></i>
      <component class="icons" v-else :is="menu.meta.icon" />
      <template #title>{{ menu.meta.title }}</template>
    </el-menu-item>
  </template>
</template>

<script setup lang="ts">

defineProps(['menuList'])
</script>

<style scoped>
.icons{
  width: 24px;
  height: 18px;
}
</style>

3.如果菜单前需要icon, 则需要安装element-plus的icon;

在工程的根目录执行：

1
npm install @element-plus/icons-vue

根据element-plus官方文档：https://element-plus.gitee.io/zh-CN/component/icon.html#%E6%B3%A8%E5%86%8C%E6%89%80%E6%9C%89%E5%9B%BE%E6%A0%87

在main.ts中添加：

1
2
3
4
5
6
7
8
9
// main.ts

// 如果您正在使用CDN引入，请删除下面一行。
import * as ElementPlusIconsVue from '@element-plus/icons-vue'

const app = createApp(App)
for (const [key, component] of Object.entries(ElementPlusIconsVue)) {
  app.component(key, component)
}

重新启动工程，大功告成！
